Name: JWD1-1.5CG Screw Type Three-Layer Sensor Din Rail TB
Brand: SHANGHAI GKONCY ELECTRIC CO., LTD.

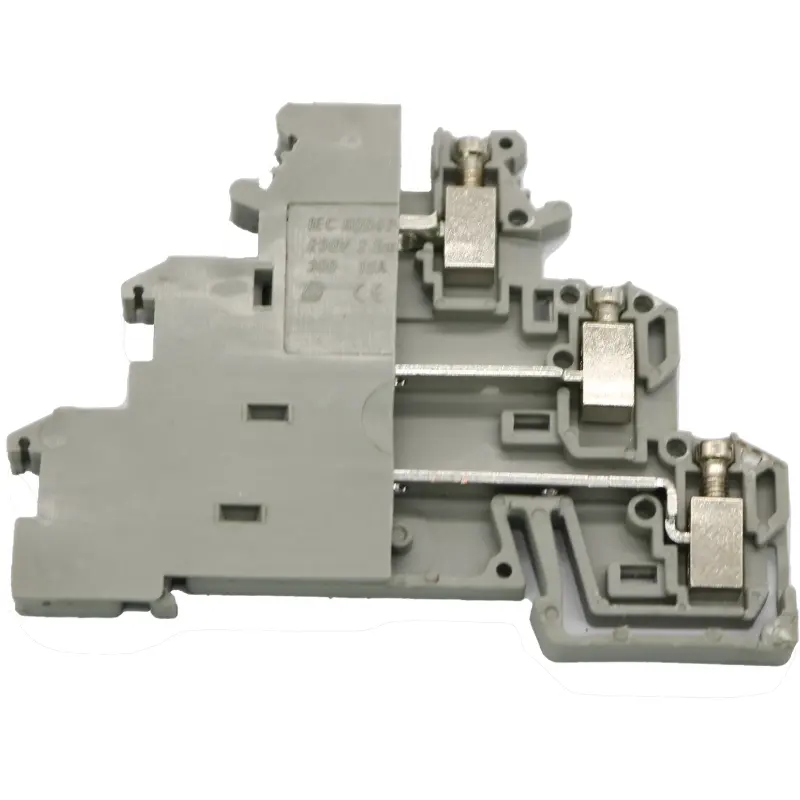

JWD1-1.5CG Screw Type Three-Layer Sensor Din Rail TB

Inductive and capacitive three-wire sensors or actuators (such as solenoid valve and motor) have an increasingly broader range of applications in the machinery manufacturing field. Sensor and actuator terminals have the following advantages:

- Significantly lower connection costs by means of potential distribution;

- The edge bridgeware eliminates the need for screws and the time of screw tightening generally required by ordinary terminals;

- The terminals with luminous display are available as expected by customers. The on-off state can be displayed to facilitate troubleshooting;

- Sensor terminals have the same profiles as actuator terminals, so they can be mixed and adjacent to each other;

The terminals with LED are used for PNP or NPN control sensors.

Terminal thickness: 6.2
	Rigid conductor	Flexible conductor	I	Ui
	(mm²)		(A)	(V)
Ratings	0.2-4	0.2-2.5	26	250*

Description	Color	Type
Terminal: It can be mounted on the guide rail .	Grey	JWD1-1.5CG
Terminal: It can be mounted on the guide rail .	Blue	JWD1-1.5CG BU

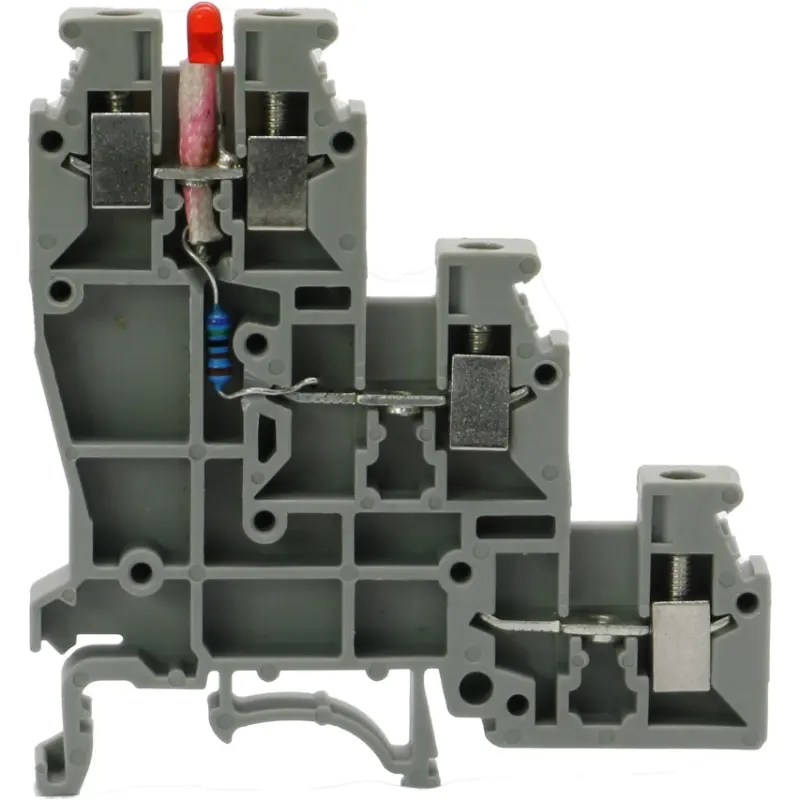

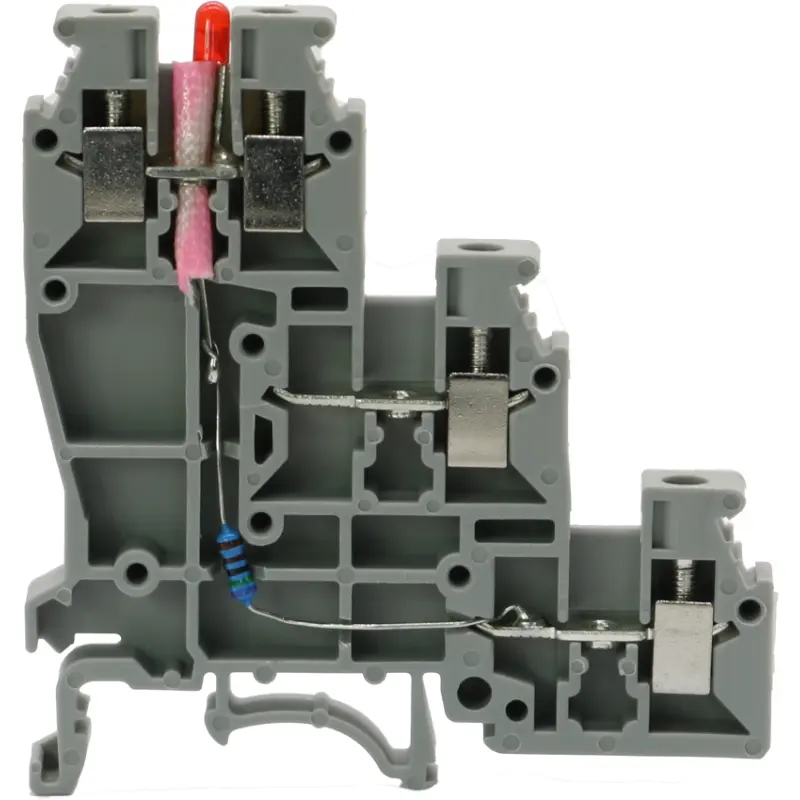

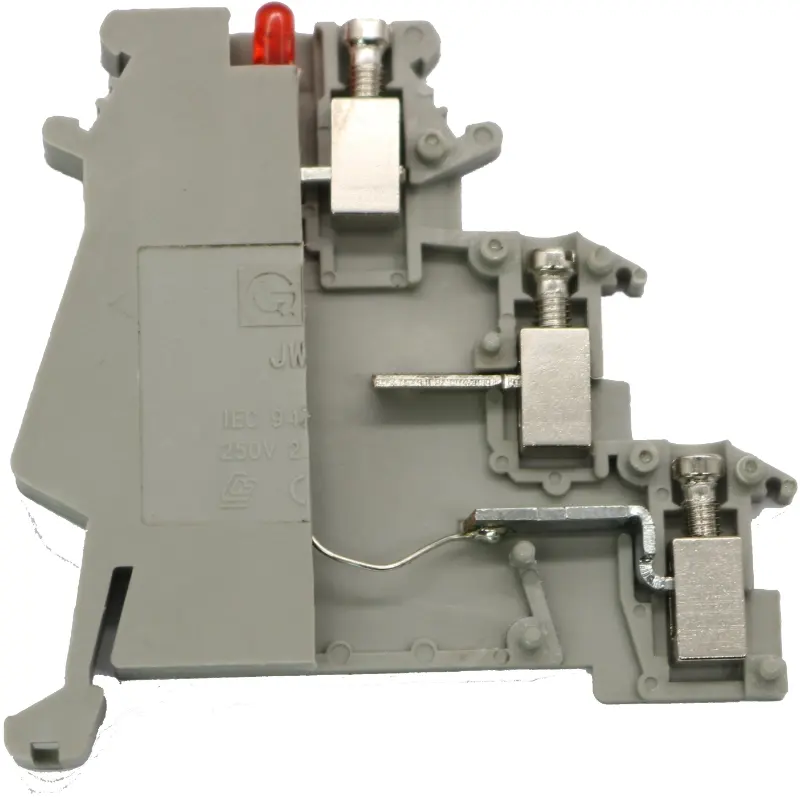

Terminal: Same as above, but there is a red (RD) or green (GN) light emitting diode (LED) between the upper and middle layers.	15-30 DC
	15-30 DC
Terminal: Same as above, but there is a red (RD) or green (GN) light emitting diode (LED) between the upper and lower layers.	15-30 DC
	15-30 DC
(1) Central liaison part: It is used to connect terminals with the same specification and form a liaison terminal group; each part has 10 digits (supplied with screws) that can be further divided at will.	ZL6/10	I_max: 26A
(2) Edge liaison part: Used for bridging between the middle and lower layers of the terminal; separable tooth back insulation		BL 6/2
		BL 6/3
		BL 6/10
(3) Quick tag: 10 digits; white	ZP6

Terminal dimensions
Thickness / width / end plate thickness	[mm]	6.2/55
Height (TH 35:7.5 / TH 35:15 / G 32:15)	[mm]	54.5/62
Technical data based on IEC/DIN VDE standards
Maximum rated working current / cross-sectional area	[A] / [mm2]	26/2.5
Maximum cross-sectional area of conductors (rigid / flexible) that can be connected if any edge liaison part is used:	[mm2]	4/2.5
Rated impulse withstand voltage / degree of pollution	[kV]/-	45385
Over-voltage category / insulation material group	-/-	lll/l
Connection capacity
Flexible conductor with tubular bare terminal / tubular pre-insulated terminal	[mm2]	0.25-2.5 / 0.25-2.5
Connection of multiple conductors (two conductors with the same cross-sectional area)
Rigid conductor / flexible conductor	[mm2]	0.2-1 /0.2-1
Flexible conductor with tubular bare terminal	[mm2]	0.25-1
Flexible conductor with DEV-tubular pre-insulated terminal	[mm2]	0.5-1
Stripping length	[mm]	8
Screw type		M3
Torque	[Nm]	0.6-0.8

Insulation material type		PA
Material flammability according to UL94		V0
Certification data (UL and CAS)
Rated working voltage / rated working current / wire gauge	UL:[V]/[A]/AWG	300/15/30-14
