Installing and maintaining sophisticated control equipment is made much easier by heavy-duty connectors, which are primarily utilized for electrical or signal connections between various devices or functional units.
GA, GE, GEE, GD, GDD, GSB, GK, GQ series, GE-Z push-in heavy-duty connectors, and terminal blocks are among the thousands of heavy-duty connection types that GKONCY manufactures. To guarantee the optimal performance of the products, the organization conducts thorough inspections and controls for product safety, dependability, and applicability.
Products from the heavy-duty connection series have passed UL, TUV, CE, and EAC certification and are designed and tested strictly in compliance with VDE0110, VDE0627, and other requirements.
UL94 V0-compliant flame retardant grade V0 material is used to make the connector body. Typically, 80°C is the maximum operating temperature. However, it can tolerate an external temperature of up to 125℃ after receiving specific treatment with PC reinforcement.
Usually constructed of cast aluminum, the protective housing's surface is coated with powder or treated with a unique series of self-extinguishing thermoplastic substance to make it resistant to mechanical pressure or impact. Additionally, the seal between the housings can raise the connector housing's protection level to IP65 (EN60529).

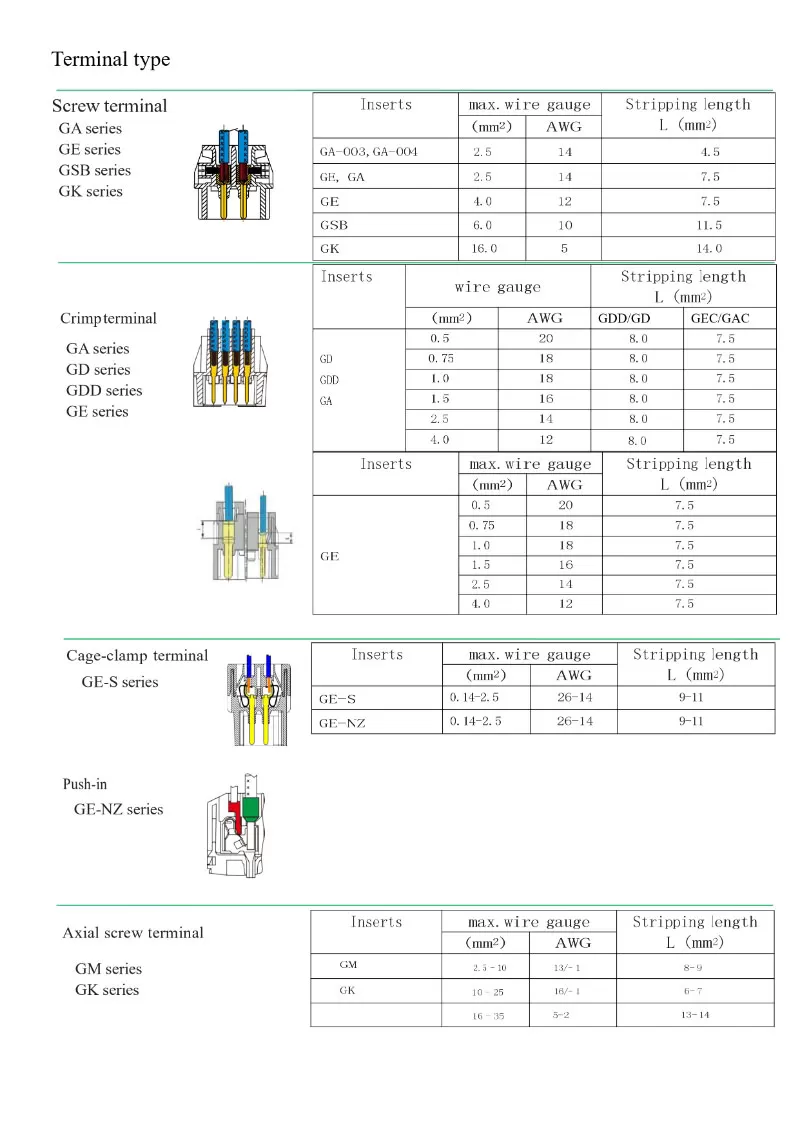

Tubular crimping terminals are required for the GA series.
