Name: GE Series Screw, Spring Cage Various Connection
Brand: SHANGHAI GKONCY ELECTRIC CO., LTD.

GE Series Screw, Spring Cage Various Connection

1. Heavy-duty connectors are primarily used for electrical or signal connections between different devices or functional units, greatly facilitating the installation and maintenance of complex control equipment.

2. The company manufactures thousands of varieties of heavy-duty connectors, including GA, GE, GEE, GD, GDD, GSB, GK, GQ series, GE-Z push-in heavy-duty connectors, and terminal blocks. The company conducts comprehensive testing and control of product safety, reliability, and applicability to ensure optimal product performance.

3. The heavy-duty connector series is designed and tested strictly according to standards such as VDE0110 and VDE0627, and has passed UL, TUV, CE, and EAC certifications.

4. The connector body is made of flame-retardant V0 material, conforming to UL94 V0. The maximum operating temperature is typically 80℃, but after special PC reinforcement treatment, it can withstand external temperatures up to 125℃.

5. The protective shell is usually made of cast aluminum, and the shell surface is treated with powder coating or self-extinguishing thermoplastic materials (special series), giving it resistance to impact or mechanical pressure. The seal between the housings also allows the connector housing to achieve an IP65 protection rating (EN60529).

6. GE screw and spring crimp series are the most common standard connectors.

Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which greatly facilitates the installation and maintenance of complex control equipment.
GKONCY produces several thousand varieties of heavy-duty connectors, including GA, GE, GEE, GD, GDD, GSB, GK, GQ series, GE-Z push-in heavy-duty connectors, and terminal blocks. The company has comprehensive inspection and control of product safety, reliability, and applicability to ensure the best performance of the products.
Heavy-duty connector series products are designed and tested in strict accordance with VDE0110, VDE0627 and other standards, and have passed UL, TUV, CE and EAC certification.
The connector body is made of flame retardant grade V0 material, which complies with UL94 V0. The maximum operating temperature is usually 80℃. However, after special treatment with PC reinforcement, it can withstand an external temperature of up to 125℃.
The protective housing is usually made of cast aluminum, and the surface of the housing is treated with powder coating or self-extinguishing thermoplastic material (special series) to make it resistant to impact or mechanical pressure. The seal between the housings can also make the protection level of the connector housing reach IP65 (EN60529).

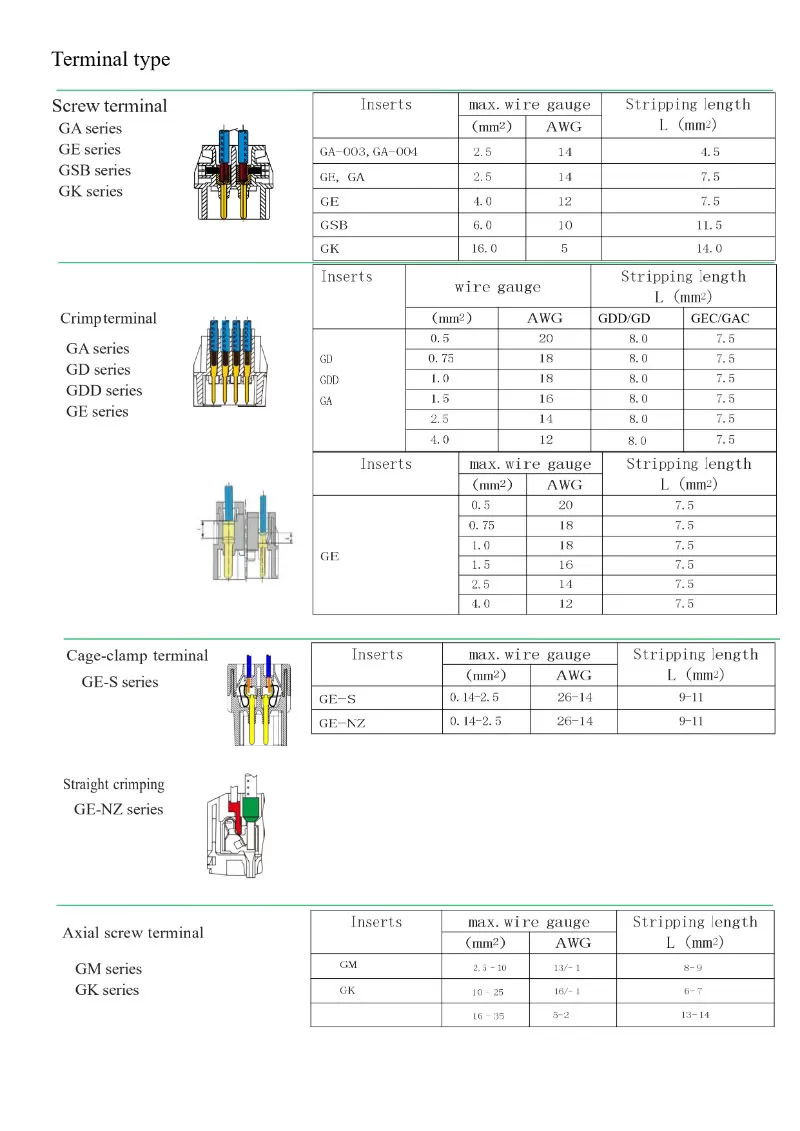

GE series provides a variety of crimping methods, including screw type, spring cage, crimp connection. Different crimping methods are applied to different usage scenarios, which can greatly improve the operation efficiency, ensure the reliability of the product, and the stability of use.
