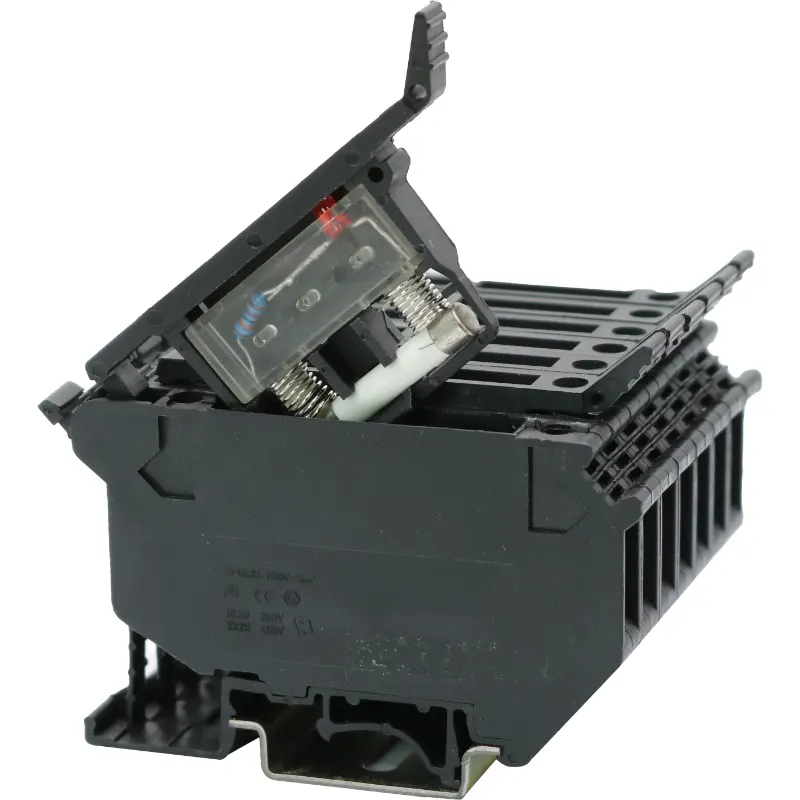

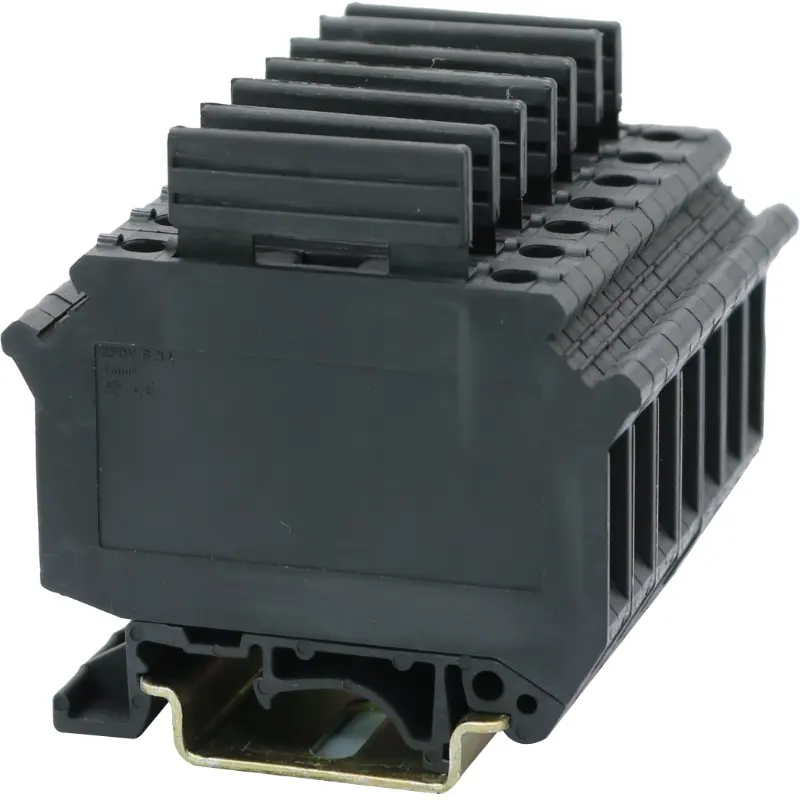

JWD1-4BRD Screw Type Fuse Din-Rail TB

This fuse terminal can be mounted on the standard mounting rails  and  and can be equipped with a fuse tube (see Page 43 for details).

JWD1-4RD(R055)

5 574 141

25

Terminal with indicator lamp: (the same function as above)
With luminous display suitable for:

Voltage (AC / DC)

Current

Terminal with indicator lamp: (the same function as above)
With luminous display suitable for:

24V-48V-110V, common for AC / DC

2-3mmA

JWD1-4RD/24V-110V AC/DC

5 574 143

25

Terminal with indicator lamp: (the same function as above)
With luminous display suitable for:

5V-12V, common for AC / DC

1.8-9mmA

JWD1-4RD/5V-12V AC/DC

5 574 145

25

Terminal with indicator lamp: (the same function as above)
With luminous display suitable for:

220V-380V, common for AC / DC

1.6-4mmA

JWD1-4RD/220V-380V AC/DC

5 574 184

25

(1) Central liaison part:

It is used to connect terminals with the same specification and form a liaison terminal group; each part has 10 digits (supplied with screws) that can be further divided at will.

(2) Connecting sheet

For central connection of more than 10 digits

(3) Edge liaison part:

Its role is the same as that of the central liaison part; with insulation on the back side; 10 digits that can be further divided at will

2 digits:

BLS 8/2

8 582 182

100

3 digits:

BLS 8/3

8 582 183

100

10 digits:

BLS 8/10

8 582 190

50

(4) Connecting strip:

Used for coupling linkage of the hinge break-away arm

4RD/LT

8 824 101

(5) Tag:

It can be quickly inserted in the upper grooves on both sides of the terminal as a whole for any identification. It has a total of 10 digits (to be divided at will).

White

ZP8

8 868 104

100

Terminal dimensions

Thickness / width / end plate thickness

[mm]

8.2 / 72.5

Height (TH 35:7.5 / TH 35:15 / G 32:15)

[mm]

56.5/64/61.5

Technical data based on IEC/DIN VDE standards

Fuse type / dimensions & specifications

-/ [mm]

(See Page 42 for details.)

Maximum power consumption at 23 °C based on the E DIN VDE 0611-6: 1995-05 standard

Note 1)

Maximum cross-sectional area of conductors (rigid / flexible) that can be connected if any edge liaison part is used

[mm²]

4/4

Rated impulse withstand voltage / degree of pollution

[kV]/-

6/3

Over-voltage category / insulation material group

-/-

III /1

Connection capacity

[mm²]

Flexible conductor with tubular bare terminal / tubular pre-insulated terminal

0.25-4 / 0.25-4

Connection of multiple conductors (connecting two conductors with the same cross-sectional area)

[mm²]

Rigid conductor / flexible conductor

[mm²]

0.2-4/0.2-4

Flexible conductor with tubular bare terminal

[mm²]

0.25-4

Flexible conductor with DEV-tubular pre-insulated terminal

[mm]

0.5-2.5

Stripping length

8

Screw type

[Nm]

M3

Torque

[mm]

0.6-0.8

Insulation material type

PA

Material flammability according to UL94

V0

Rated working voltage / rated working current / wire gauge

UL:[V]/[A]/AWG

800/6.3/26-10

Type G cartridge fuse-link with cylindrical cap ("Fuse Tube" for short)

Fuse terminals with indicator lamp for special voltages can be customized upon the customer's request.

Note 1): Current subject to the fuse tube, and voltage subject to the indicator lamp
