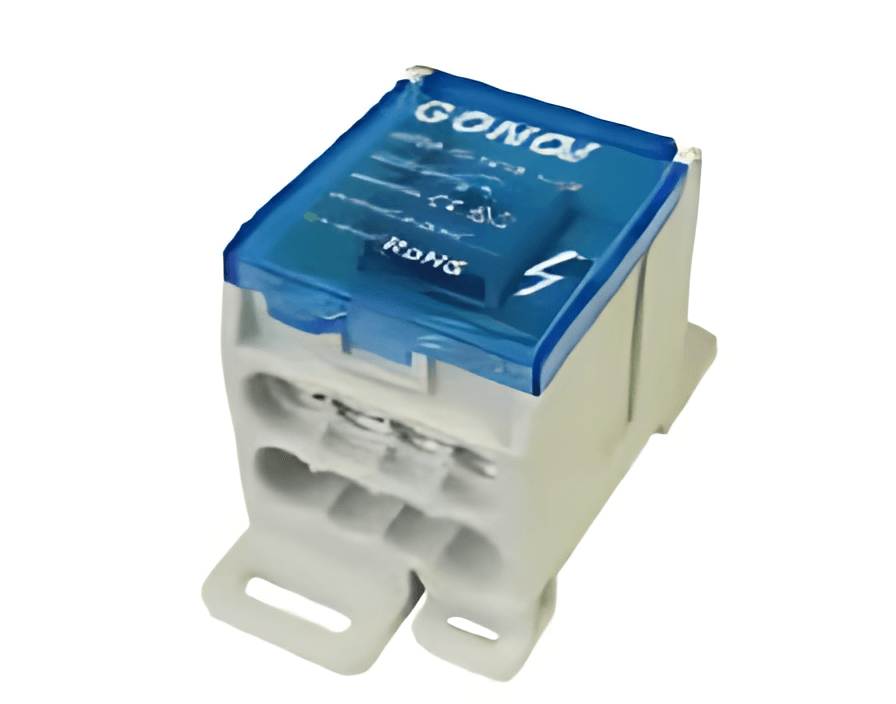

1. Tinned copper or aluminum modules for connecting copper or aluminum conductors.
2. Removable hinged screw-mounted cover.
3. Design allows for visual inspection of conductors and connection verification.
4. Modular plug-in structure for building multi-level junction boxes.
5. Can be directly clipped onto DIN rails or screwed to a panel.
6. 95% fill power.
7. Complies with the Restriction of Hazardous Substances Directive (RoHS) in electrical and electronic equipment.
| Technical Data | 175A | |||
| Maximum current | Technical Data | |||
| Overall dimensions | Length | Width | Height | |
| 75 | 40 | 50 | ||
| Width / thickness / height (TH35:7.5) | ||||
| Parameters according to the IEC 60 947-7-1 standard | 690 | |||
| Isolation voltage | V | 175 | ||
| Rated current | A | 70-16/16 | ||
| Cross-sectional area for rated input / output | (mm2) | 2.5KV/3 | ||
| Rated impulse voltage / degree of pollution | V0 | |||
| Flammability according to the standard UL94 | ||||
| Additional Technical Data | 30 | |||
| Short-circuit current (peak) | 11.8 | |||
| Short-circuit current >1S | 175A | |||
