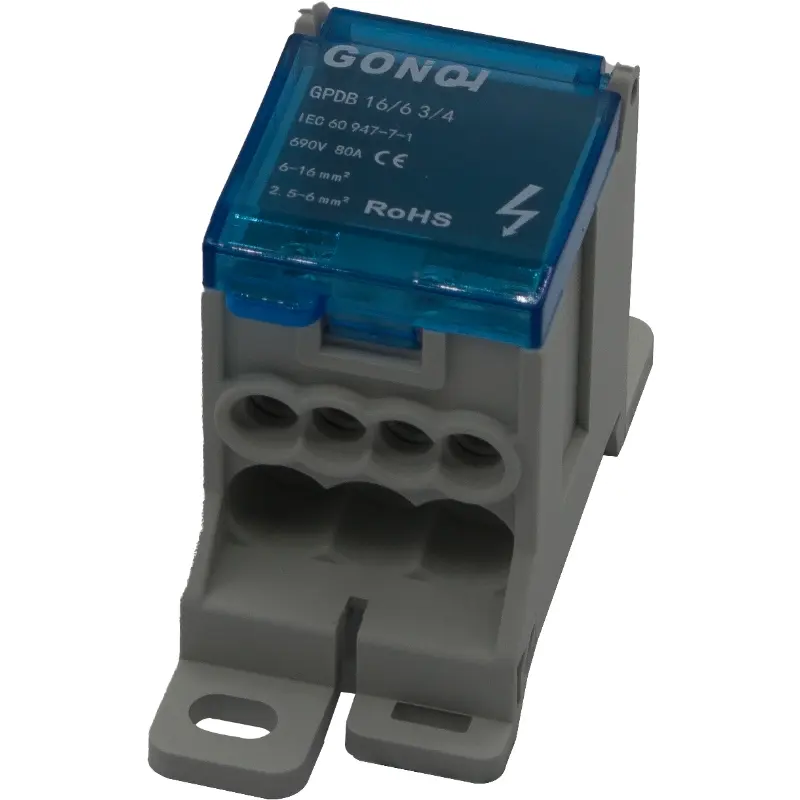

Name: GPDB 16/6 3/4 Wiring Terminals
Brand: SHANGHAI GKONCY ELECTRIC CO., LTD.

GPDB 16/6 3/4 Wiring Terminals

1. Tinned copper or aluminum modules for connecting copper or aluminum conductors.

2. Removable hinged screw-mounted cover.

3. Design allows for visual inspection of conductors and connection verification.

4. Modular plug-in structure for building multi-level junction boxes.

5. Can be directly clipped onto DIN rails or screwed to a panel.

6. 95% fill power.

7. Complies with the Restriction of Hazardous Substances Directive (RoHS) in electrical and electronic equipment.

Technical Data		GPDB 16/6 3/4
Maximum current		80A
Overall dimensions		Technical Data
		Length	Width	Height
Width / thickness / height (TH35:7.5)		66	30.2	48
Parameters according to the IEC 60 947-7-1 standard
Isolation voltage	V	690
Rated current	A	80
Cross-sectional area for rated input / output	(mm²)	16/16-6
Rated impulse voltage / degree of pollution		2.5KV/3
Flammability according to the standard UL94		V0
Additional Technical Data
Short-circuit current (peak)		22
Short-circuit current >1S		3

Input		A	B
Number of input terminal points		1
"e" single-stranded rigid conductor H07V-U	(mm²)	2.5…16
"m" stranded rigid conductor H07V-R	(mm²)	2.5…16
"f" flexible conductor H07V-K	(mm²)	2.5…16
"f" flexible conductor H07V-R with tubular terminal according to DIN46228-1	(mm²)	2.5…16
"f" flexible conductor H07V-R for tubular terminal with plastic sleeve according to DIN46228-1	(mm²)	2.5…16
Diameter	mm	6.8
Tightening torque	(Nm)	1.5…3
Screw specification for crimping		M6
Stripping length	(mm)	9…12
Screwdriver bit size		SZS 1.0X6.5
Output		A	B
Number of output terminal points		2	4
"e" single-stranded rigid conductor H07V-U	(mm²)	2.5…16	2.5…6
"m" stranded rigid conductor H07V-R	(mm²)	2.5…16	2.5…6
"f" flexible conductor H07V-K	(mm²)	2.5…16	2.5…6
"f" flexible conductor H07V-R with tubular terminal according to DIN46228-1	(mm²)	2.5…16	2.5…6
"f" flexible conductor H07V-R for tubular terminal with plastic sleeve according to DIN46228-1	(mm²)	2.5…16	2.5…6
Diameter	mm	6.8	4.5
Tightening torque	(Nm)	1.5…3	0.8…1.5
Screw specification for crimping		M6	M5
Stripping length	(mm)	9…12	9…12
Screwdriver bit size		SZS 1.0X6.5	SZS 1.0X4.0
UL/CSA-compliant parameters
Voltage / current / wire size	UL
Voltage / current / wire size	CSA
