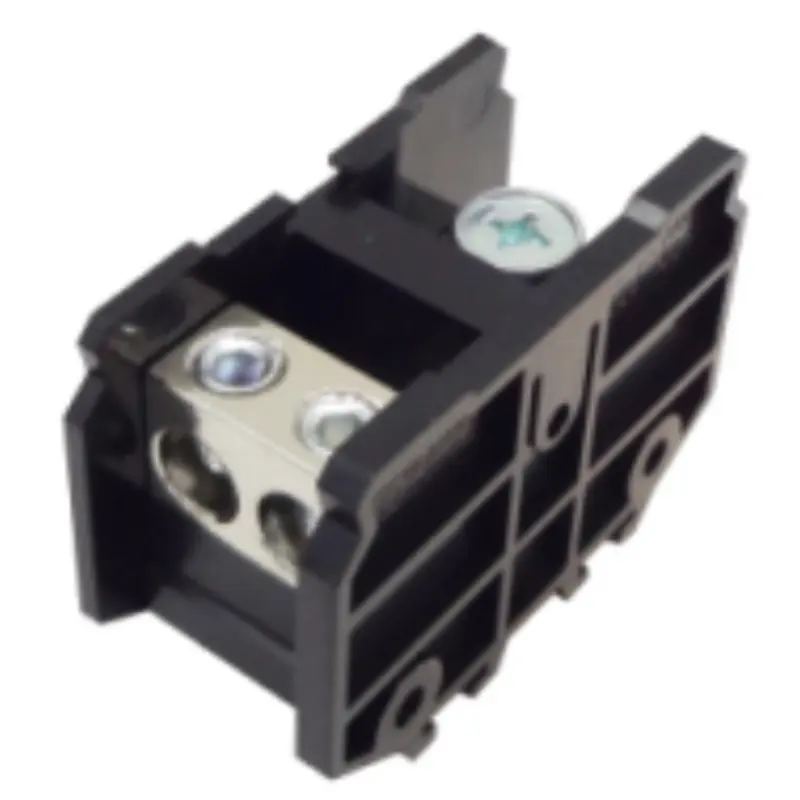

JX-RT100/2*25 Distribution Terminals

Terminal dimensions

Length

Width

Height

Overall dimensions

62

25

43.5

Parameters according to the IEC 60 947-7-1 standard

Isolation voltage

V

600

Rated current

A

130

Wire gauge for rated input / output

(mm²)

22-38/6-25

Rated impulse voltage / degree of pollution

2.5KV/3

Flammability according to the standard UL94

V0

Additional Technical Data

Short-circuit current (peak)

10KA

Short-circuit current time

>1S

Input

Number of input terminal points

1

Single-stranded rigid conductor H07V-U with round terminal

(mm²)

22..38

Stranded rigid conductor H07V-R with round terminal

(mm²)

22..38

Flexible conductor H07V-K with round terminal

(mm²)

22..38

Tightening torque

(Nm)

8-10

Screw specification for crimping

M8

Stripping length

(mm)

14

Sleeve

(mm)

13

Output

Number of output terminal points

2

"e" single-stranded rigid conductor H07V-U

(mm²)

6..25

"m" stranded rigid conductor H07V-R

(mm²)

6..25

"f" flexible conductor H07V-K

(mm²)

6..25

"f" flexible conductor H07V-R with tubular terminal according to DIN46228-1

(mm²)

6..25

"f" flexible conductor H07V-R for tubular terminal with plastic sleeve according to DIN46228-1

(mm²)

6.25

Diameter (ф)

(mm)

8.6

Tightening torque

(Nm)

6-9

Screw specification for crimping

M8

Stripping length

(mm)

12

Hex key

6
