1. Wiring range: 0.2-4mm².

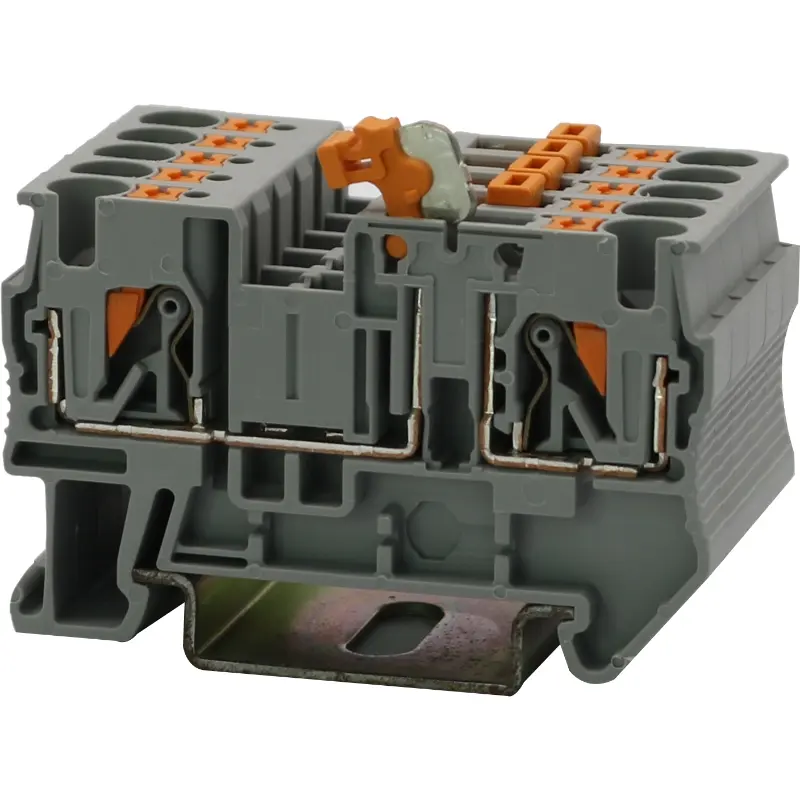

2. Two wiring holes with a switch in the middle for quick on/off switching.
3. Compared to traditional terminal blocks, it enables fast and efficient wiring, improving production wiring efficiency. DIN rail terminal blocks utilize proven direct connection technology and are typically heat-treated to ensure superior wiring performance.
4. Wire connections can be completed simply by inserting the wire without a screwdriver. This eliminates the need for screw tightening, significantly reducing wiring time and making it ideal for high-volume installations and subsequent maintenance.
5. Quick-plug shorting connectors allow for rapid multi-digit shorting or bridging.
6. Flat marking strips enable quick marking.
| Terminal thickness: 6.2 | |||
| Overall dimensions | |||
| Width / thickness / height (mm) | 73.1/6.2/(36.5/44) | ||
| Stripping length (mm) | 10-12mm | ||
| Rating data | |||
| Rated voltage / rated current / rated cross-section | 1000V/20A/4mm2 | ||
| Rated impulse withstand voltage / degree of pollution | 8kV/3 | ||
| Central liaison unit Imax | 32A | ||
| Conductor clamping range (mm2) | |||
| Single conductor | 0.2 6 | ||
| Stranded conductor (with tubular pre-insulated terminal) | 0.2 4 | ||
