Name: JWD2-2.5a/2JD Spring-Cage Double Layer Din-Rail TB
Brand: SHANGHAI GKONCY ELECTRIC CO., LTD.

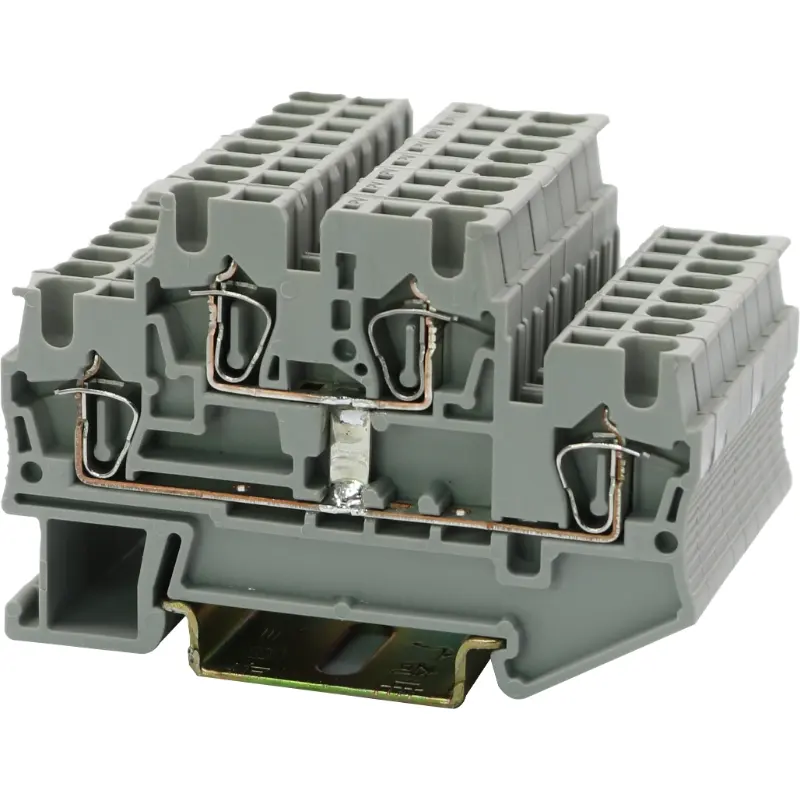

JWD2-2.5a/2JD Spring-Cage Double Layer Din-Rail TB

1. Wiring range: 0.2-2.5mm².

2. Four connection points with interconnected top and bottom connections.

3. Simple wiring for extremely flexible conductors.

4. Spring-loaded contact elements ensure reliable vibration resistance.

5. No limitation on wiring capacity when using conductors with cold-pressed heads.

6. Flat marking strip for quick marking.

7. With grounding conductor installed.

The appearance of the JWD2-…JD terminal is consistent with that of the JWD2-… terminal. They are ground terminals.

Insertion of the terminal on the guide rail can ensure correct mechanical and electric connections.

The JWD2-…JD can meet all the technical requirements of IEC60947-7-2, especially in the following aspects:

– Low contact resistance;

– Corrosion resistance of the contact;

– Yellow + green housing;

– Multiple identification digits.

Description		Color	Type
Spring-cage terminal mounted on		Yellow + green	JWD2-2.5a/2JD
Spring-cage terminal mounted on		Yellow + green	JWD2-2.5a/2JD	(1) End plate	Grey	G-D2-2.5a/2
(2) Plug in bridge used for horizontal connection in the terminal center		2 ports
		3 ports
		4 ports
		5 ports
		10 ports
		20 ports
(3) Double-tagging bracket inserted in the double-layer spring-cage terminal JWD2…/2, identified with ZP5 and ZBFM5			ZP-a/ZJ2
(4) Screwdriver for spring-cage terminal operation			SZF 1-0.6X3.5
(5) Flat quick designation strip, with 100 units for lateral identification			ZBFM5
(6) Test plug	Grey

Terminal dimensions
Thickness / length / end plate thickness		[mm]	5.2/67.5/2.2
Height (TH 35:7.5 / TH 35:15)		[mm]	47.5/55
Technical data in accordance with IEC/DIN VDE standards
Maximum rated working current / cross-sectional area		[A] / [mm²]	—
Rated impulse withstand voltage / degree of pollution		[KV] / -	8/3
Over-voltage category / insulation material group		- / -	III/1
Connection
Flexible wire with ferrule		[mm²]	0.25-2.5
Flexible wire with cable lug		[mm²]	0.25-2.5

Stripping length		[mm]	10
Plug gauge (IEC60947-1)			A3
Insulation material			PA
Grading as per UL 94			V0
Certification data (UL and CSA/CUL)
Rated working voltage / rated working current / wire gauge	UL: [V]/[A]/AWG		26-12
	CSA/CUL: [V]/[A]/AWG
