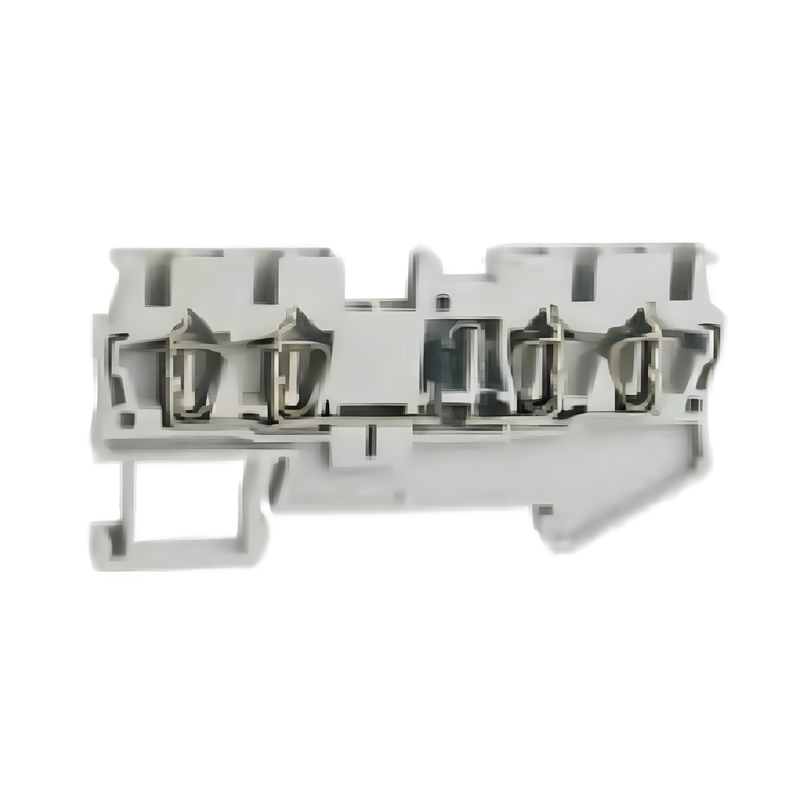

Name: JWD2-2.5a/2-2LA Spring Cage Terminal Block with Diode Installed in Center
Brand: SHANGHAI GKONCY ELECTRIC CO., LTD.

JWD2-2.5a/2-2LA Spring Cage Terminal Block with Diode Installed in Center

1. Wiring range: 0.2-2.5mm².

2. Four connection points, with a central break for soldering a diode, enabling unidirectional conduction.

3. Simple wiring for extremely flexible wires.

4. Spring-loaded contact elements ensure reliable vibration resistance.

5. No limitation on wiring capacity when using wires with cold-pressed heads.

6. Two types of quick-marking strips: a central marking strip and a flat marking strip, to meet the marking needs of users in different scenarios.

The thickness of the JWD2-2.5a/2-2LA spring terminal is 5.2 mm. It can play the role of various switches. Upon request, the IN4007 diode can be soldered from left to right or from right to left to provide a three-conductor or four-conductor terminal and can be used for connecting multiple conductors.

The RL207 diode is built in JWD2-4a/2-2LA. The maximum persistent current is 2 A.

1) Maximum current subject to the diode used.

Rigid solid		Flexible multi-conductor	I	Ui
(mm²)			(mm²)	(V)
0.2-4	0.2-2.5		¹)	500
Built-in IN4007 diode Reverse voltage: 1000 V Maximum persistent current: 1 A

Description	Color	Type
Spring-cage terminal with 1N 4007 diode, turned-on from left to right		JWD2-2.5a/2-2LA/L-R
		Figure 5
Spring-cage terminal with 1N 4007 diode, turned-on from right to left		JWD2-2.5a/2-2LA/R-L
		Figure 6
(1) End plate	Grey	G-D2-2.5a/2-2
(2) Plug in bridge used for horizontal connection in the terminal center	2 ports	FBS 2-5	Imax: 24A
	3 ports	FBS 3-5	24A
	4 ports	FBS 4-5	24A
	5 ports	FBS 5-5	24A
	10 ports	FBS 10-5	24A
	20 ports	FBS 20-5	24A
(3) Partition plate used to isulate the terminal block assembly		GF-D2-a/2-2
(4) Warning panel mounted at the operation port of the D2 "Miniature Spring" spring-cage terminal		WST2.5
(5) Screwdriver		SZF 1-0.6X3.5
(6) Quick tag, with 10 units for identification in the terminal center		ZP5
(7) Quick tag, with 100 units for lateral identification		ZBFM5
(8) Test plug	Grey	PS-5

Terminal dimensions
Thickness / length / end plate thickness		5.2/72/2.2
Height (TH 35:7.5 / TH 35:15)		36.5/44
Technical data in accordance with IEC/DIN VDE standards
Maximum rated working current / cross-sectional area		1)/4
Rated impulse withstand voltage / degree of pollution		4/3
Over-voltage category / insulation material group		III/I
Connection
Flexible wire with ferrule		0.25-2.5
Flexible wire with cable lug		0.25-2.5

Stripping length		10
Plug gauge (IEC60947-1)		A3
Insulation material		PA
Grading as per UL 94		V0
Certification data (UL and CSA/CUL)
Rated working voltage / rated working current / wire gauge	UL: [V]/[A]/AWG	600/20/26-12
