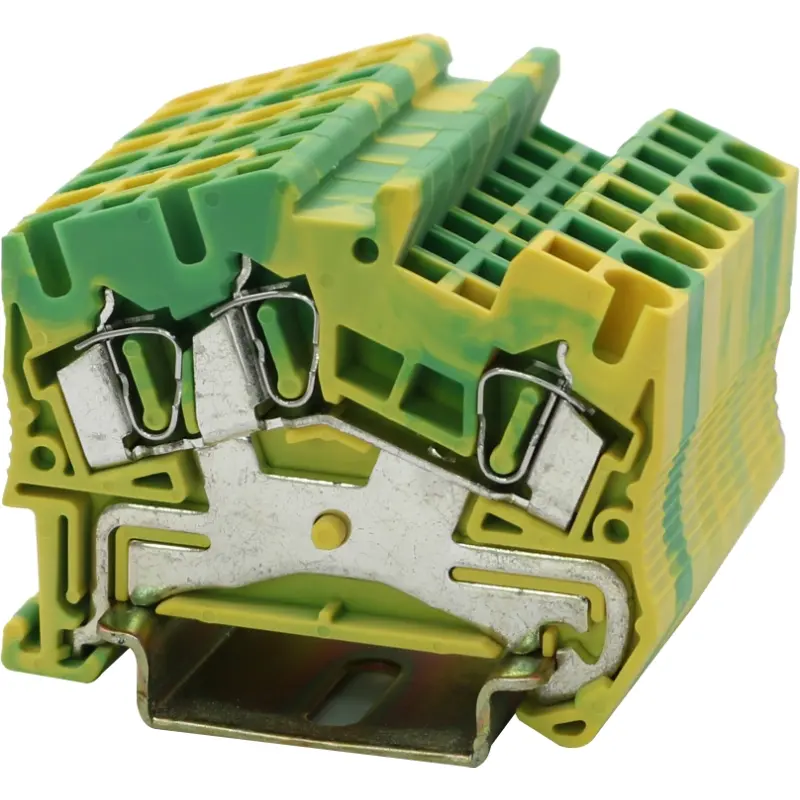

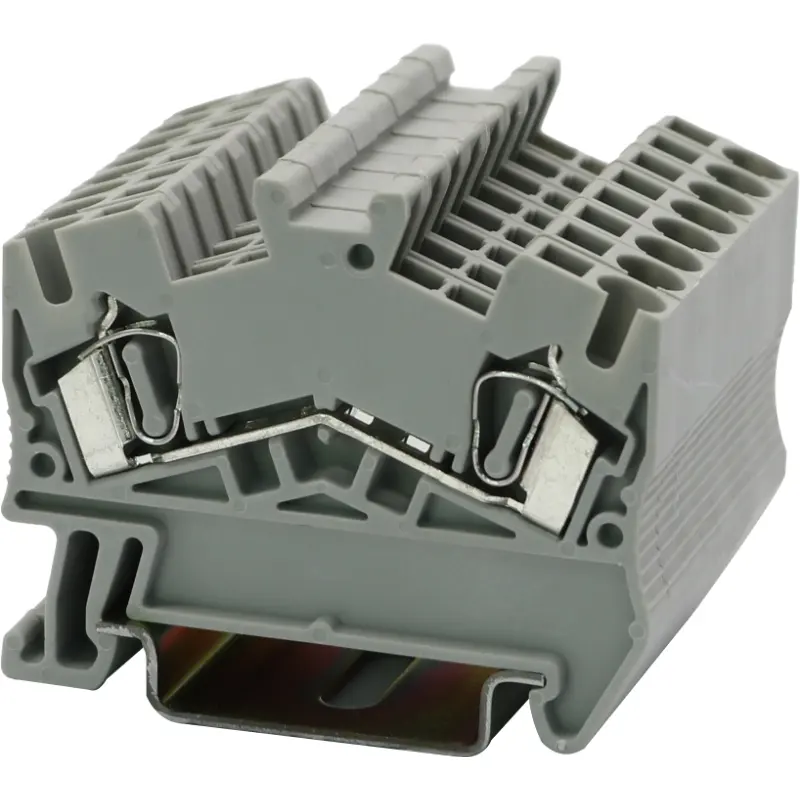

JWD2-2.5a/2-1XM JD Spring-Cage Inclined Din-Rail TB

Terminal mounted on

Grey

Blue

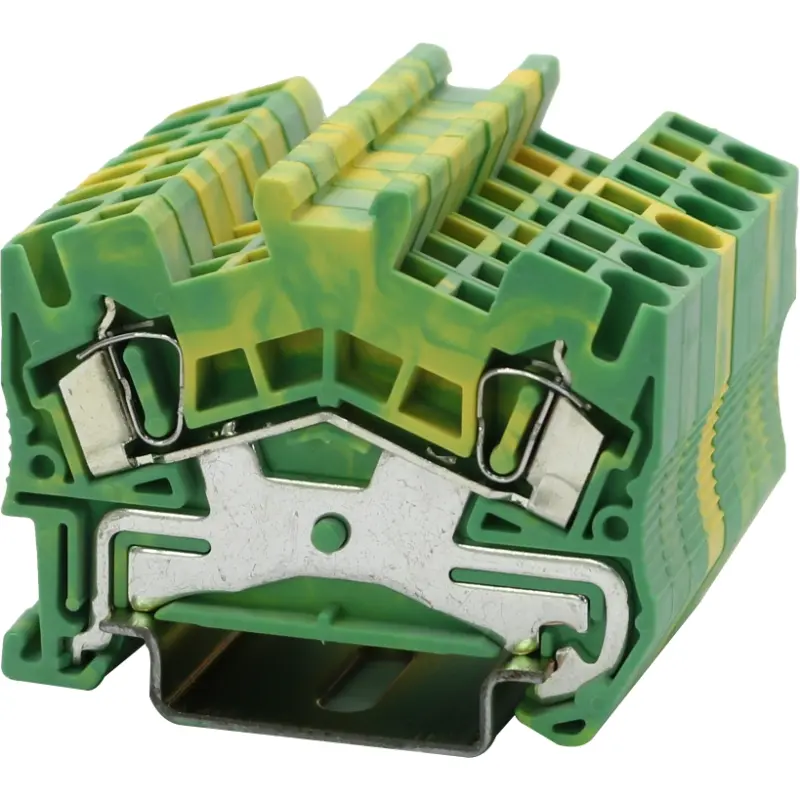

Ground terminal mounted on

Yellow + green

JWD2-2.5a/2-1XMJD

(1) End plate

G-D2-2.5aXM

(2) Plug-in bridgeware used for horizontal connection in the terminal center

2 digits

3 digits

4 digits

5 digits

10 digits

20 digits

Conversion bridgeware for connecting 6aXM to the 2.5a/4aXM terminal

(3) Group partition for terminal group display and electric isolation, with thickness of 2 mm

(4) Screwdriver for spring-cage terminal operation

SZF 1-0.6X3.5

(5) Warning panel mounted at the operation port of the JWD2 "Miniature Spring" spring-cage terminal, with 5 digits

(6) Quick tag used for identification in the terminal center

ZP5

(7) Test plug

Grey

Thickness / length /end plate thickness

[mm]

5.2/51/2.2

Height (TH 35:7.5 / TH 35:15)

[mm]

43/50.5

Technical data in accordance with IEC/DIN VDE standards

Maximum rated working current / cross-sectional area

[A] / [mm²]

-

Rated impulse withstand voltage / degree of pollution

[KV] / -

8/3

Over-voltage category / insulation material group

- / -

lll/l

Connection

Stranded wire with tubular pre-insulated terminal

[mm²]

0.25-2.5

Stranded wire with tubular bare terminal

[mm²]

0.25-2.5

[mm]

10

Plug gauge (IEC60947-1)

A3

Insulation material

PA

Grading as per UL 94

V0

Rated working voltage / rated working current / wire gauge

UL;[V]/[A]/AWG

CSA/CUL;[V]/[A]/AWG

-/-/26-12
