Name: GD Series Crimping Connection
Brand: SHANGHAI GKONCY ELECTRIC CO., LTD.

GD Series Crimping Connection

1. Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which greatly facilitates the installation and maintenance of complex control equipment.

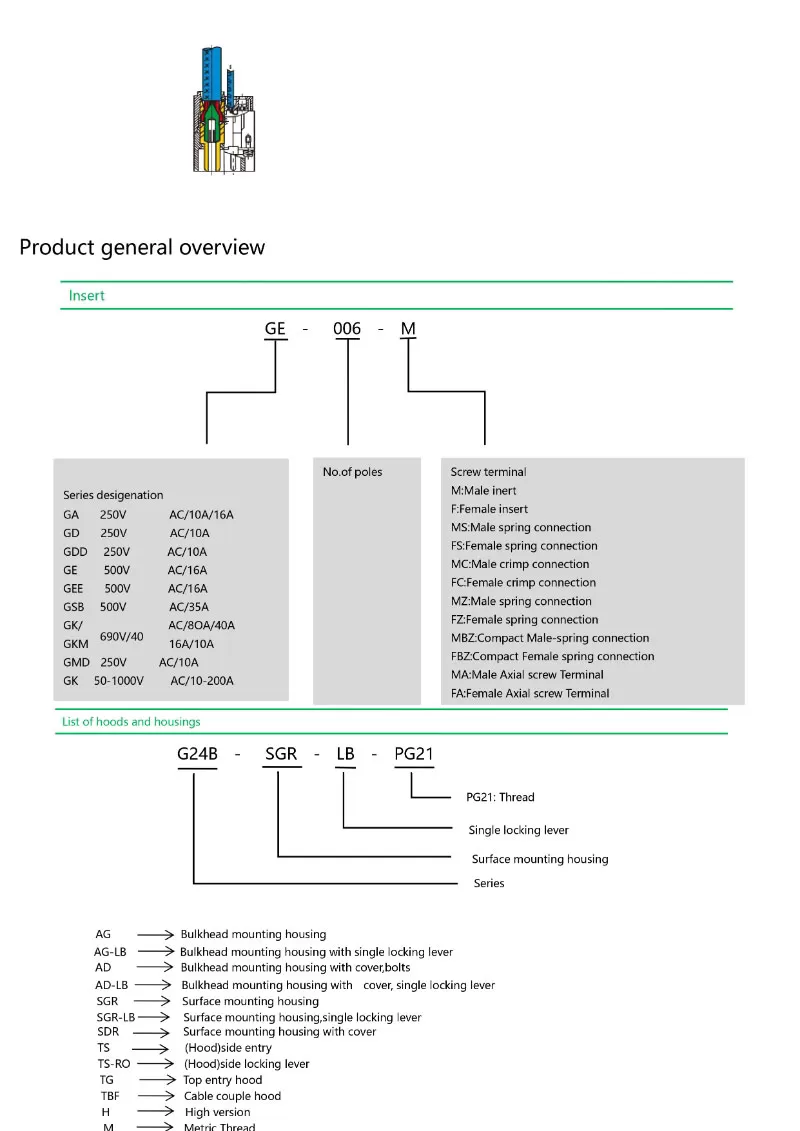

2. GKONCY produces several thousand varieties of heavy-duty connectors, including GA, GE, GEE, GD, GDD, GSB, GK, GQ series, GE-Z push-in heavy-duty connectors, and terminal blocks. The company has comprehensive inspection and control of product safety, reliability, and applicability to ensure the best performance of the products.

3. Heavy-duty connector series products are designed and tested in strict accordance with VDE0110, VDE0627 and other standards, and have passed UL, TUV, CE and EAC certification.

4. The connector body is made of flame retardant grade V0 material, which complies with UL94 V0. The maximum operating temperature is usually 80℃. However, after special treatment with PC reinforcement, it can withstand an external temperature of up to 125℃.

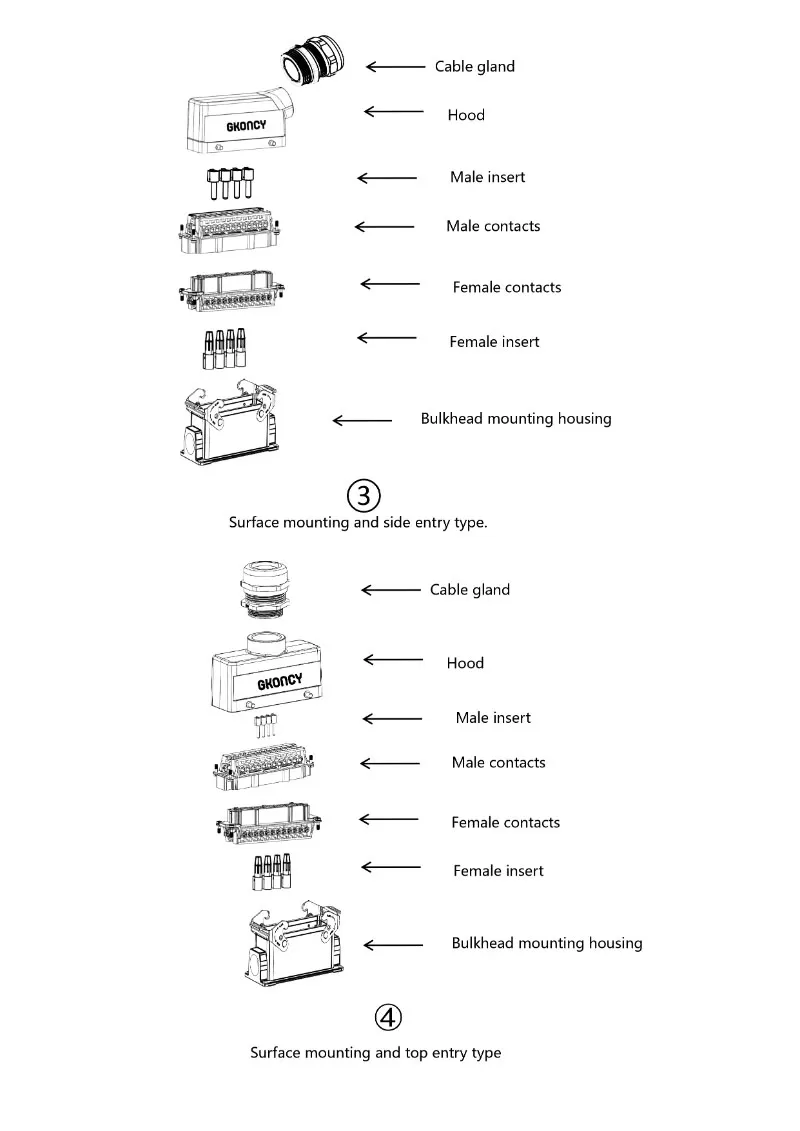

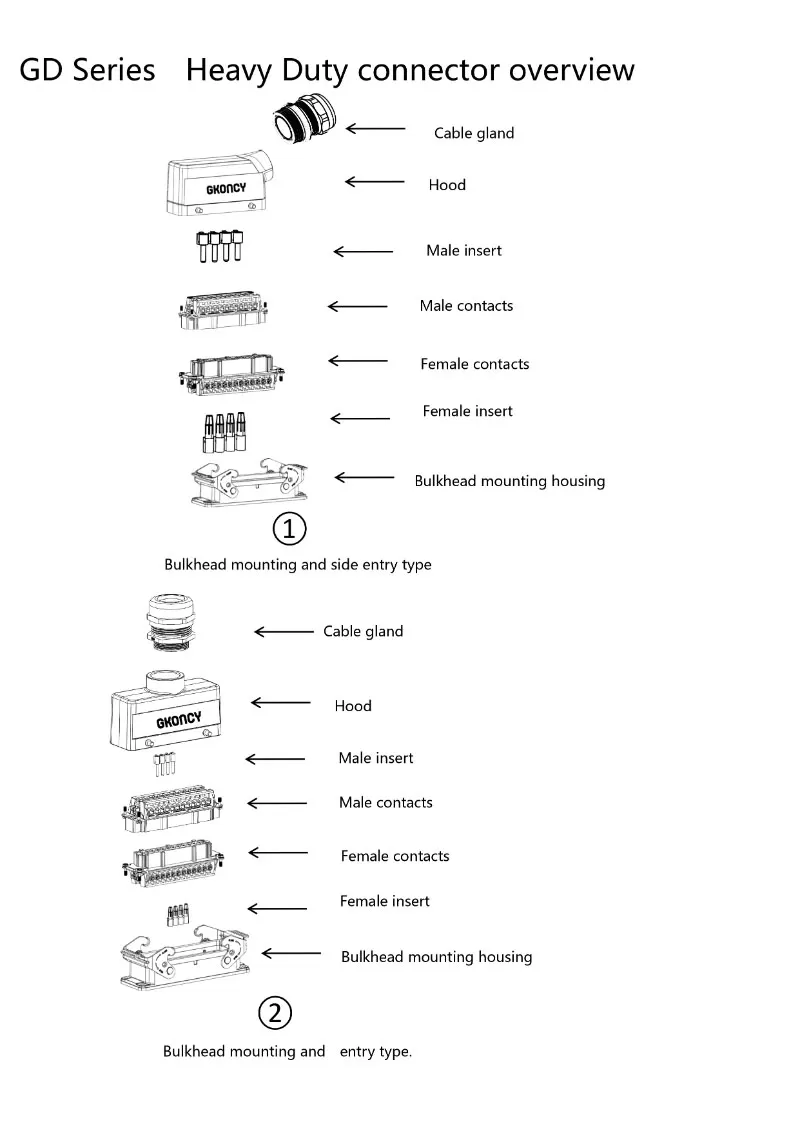

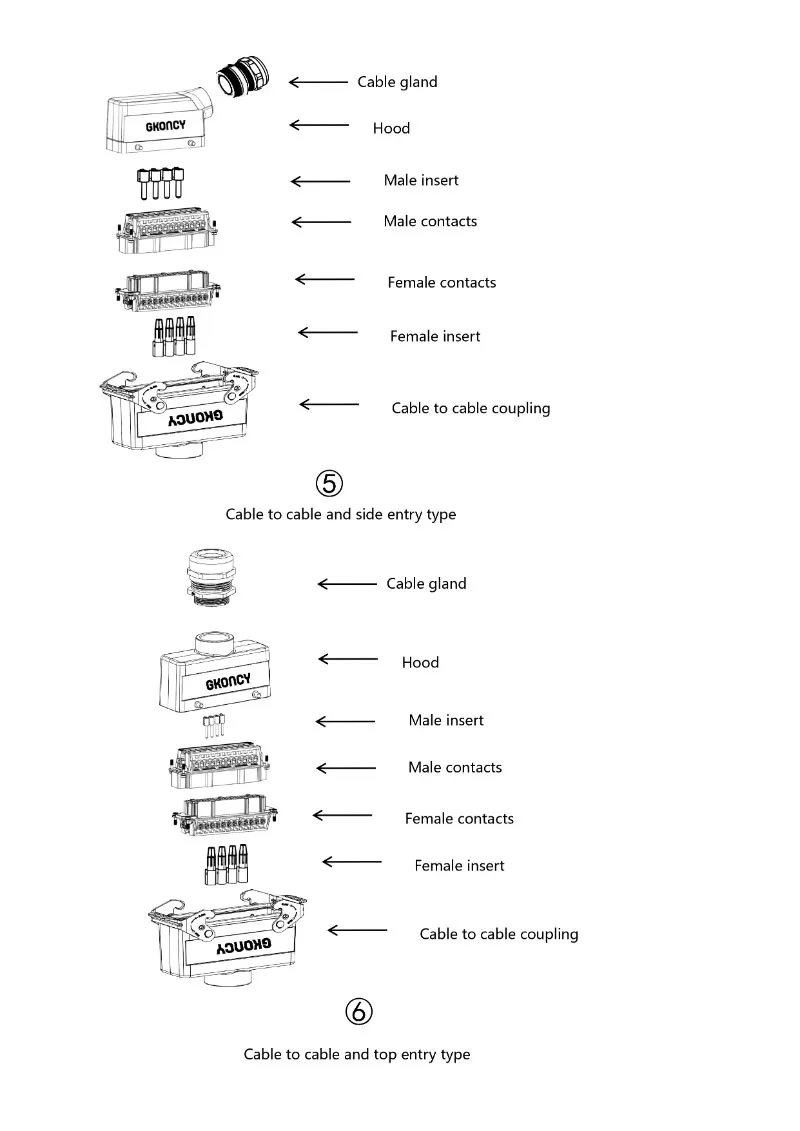

5. The protective housing is usually made of cast aluminum, and the surface of the housing is treated with powder coating or self-extinguishing thermoplastic material (special series) to make it resistant to impact or mechanical pressure. The seal between the housings can also make the protection level of the connector housing reach IP65 (EN60529).

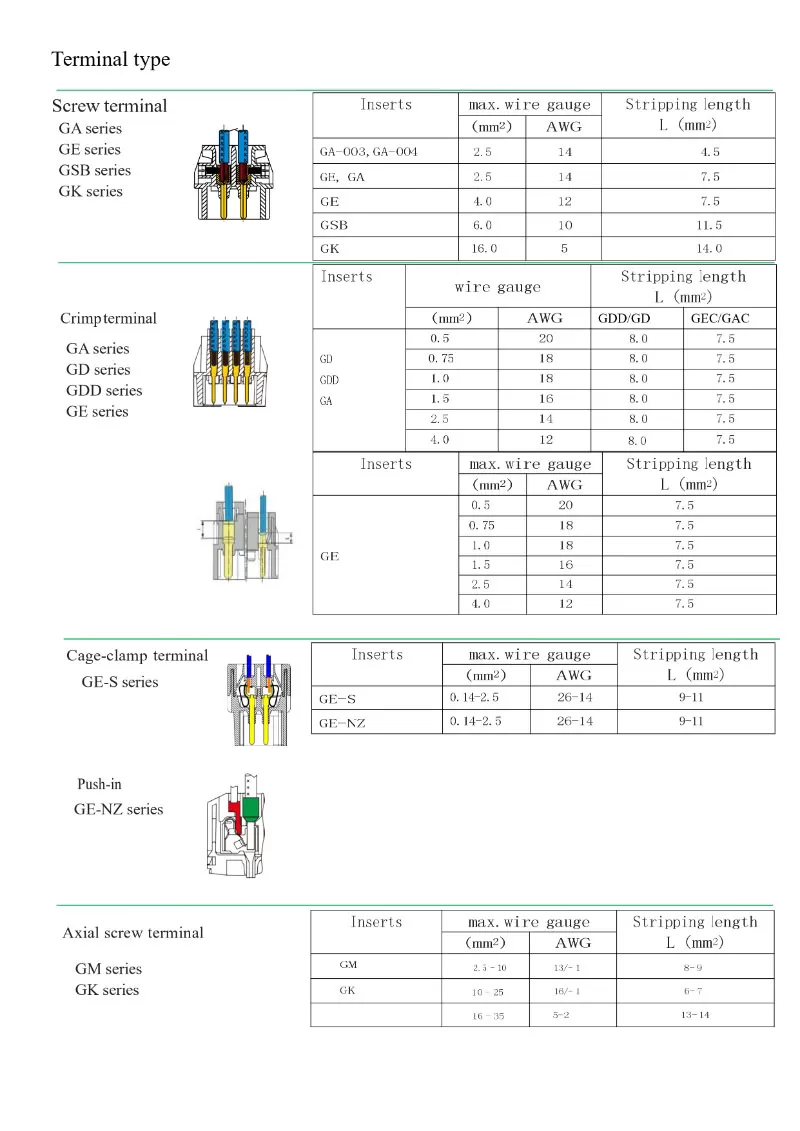

6. Crimp connection is the guarantee of a good connection. At the same time, the stripping length and crimping tool used when crimping the wire are also an important factor. After these basic conditions are met, users can ensure reliable crimping and low plug resistance, while also having high corrosion resistance.

Installing and maintaining sophisticated control equipment is made much easier by heavy-duty connectors, which are primarily utilized for electrical or signal connections between various devices or functional units.
GA, GE, GEE, GD, GDD, GSB, GK, GQ series, GE-Z push-in heavy-duty connectors, and terminal blocks are among the thousands of heavy-duty connection types that GKONCY manufactures. To guarantee the optimal performance of the products, the organization conducts thorough inspections and controls for product safety, dependability, and applicability.
Products from the heavy-duty connection series have passed UL, TUV, CE, and EAC certification and are designed and tested strictly in compliance with VDE0110, VDE0627, and other requirements.
UL94 V0-compliant flame retardant grade V0 material is used to make the connector body. Typically, 80°C is the maximum operating temperature. However, it can tolerate an external temperature of up to 125℃ after receiving specific treatment with PC reinforcement.
Usually constructed of cast aluminum, the protective housing's surface is coated with powder or treated with a unique series of self-extinguishing thermoplastic substance to make it resistant to mechanical pressure or impact. Additionally, the seal between the housings can raise the connector housing's protection level to IP65 (EN60529).
A good connection is ensured by a crimp connection. In addition, the length of the stripping and the instrument used to crimp the wire are crucial considerations. Users may guarantee dependable crimping, low plug resistance, and strong corrosion resistance once these fundamental requirements are satisfied.
